169 - Swivel Base Flange (Self Colour)
A versatile swivel fitting, useful for fixing angled tubes to walls etc. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. The assembly is riveted together, although items can be supplied separately as 169M and 173F.
This fitting is not to be used as a base plate for guardrail. This fitting is not designed to withstand lateral loading.
Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.
Please note that these fittings are bare metal and will be naturally prone to rusting unless a protective coating such as a lacquer is applied.
Product Data & Dimensions

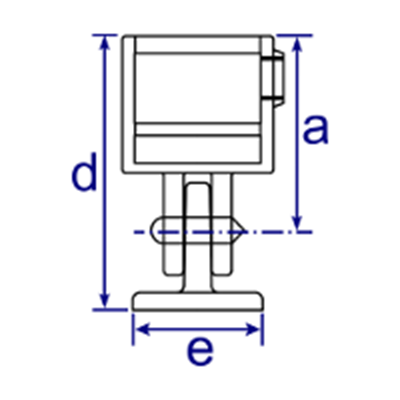

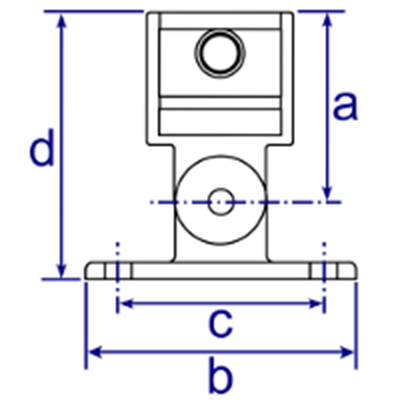

| Size | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | Hole Dia (mm) | Weight (kg) | Box Qty* |
| B34 | 61 | 112 | 85 | 93 | 52 | 11 | 0.75 | 80 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
